    WL Front Fender Light Wiring Harness

    I am going to be installing a front fender light on my 1949 45 soon.

    I have this wiring kit:
    Page not found – 45 Restoration Co.
    https://www.45restoration.com/Produc...__9786-11.aspx
    45 Restoration Company has been supplying antique motorcycle parts and accessories since 1973. Our company was forged from a passion for Harley-Davidson’s flathead motors and a desire to keep these antique bikes running for decades to come.

    I know which terminal it is supposed to wire up to, per the wiring diagram I have.

    Any helpful hints on its routing from fender up to ignition switch?
    Thank you!
    Matt Allyn
    1932 Ford Roadster / 1949 Mercury Coupe / 1949 Harley Davidson 45 / 1957 Cadillac Eldorado Biarritz Convertible / 1957 Lincoln Premiere Convertible / 1959 Lambretta TV175 / 1962 Sunbeam Alpine Convertible / 1962 Chrysler New Yorker Station Wagon / 1962 Chrysler 300H / 1962 Chrysler 300 Sport / 1964 International Travelall / 2015 Tesla Model S
    Tags: None
    • Chris Haynes
      Curmudgeon
      • Jul 2002
      • 5939
      #2
      The wire goes through the fender using an insulated bolt on the fender horn mount.
      Be sure to visit;
      http://www.vintageamericanmotorcycles.com/main.php
      Be sure to register at the site so you can see large images.
      Also be sure to visit http://www.caimag.com/forum/

        Comment

        • 1962300
          Member
          • Jun 2015
          • 58
          #3
          Huh. My horn is not mounted to the fender. It's on its own mount on the springer front end, under the headlight. Do you know where the metal tube for the wiring attaches?
          Oh...And my wife's maiden name was Haynes as well!
          Thanks
          Matt Allyn
          1932 Ford Roadster / 1949 Mercury Coupe / 1949 Harley Davidson 45 / 1957 Cadillac Eldorado Biarritz Convertible / 1957 Lincoln Premiere Convertible / 1959 Lambretta TV175 / 1962 Sunbeam Alpine Convertible / 1962 Chrysler New Yorker Station Wagon / 1962 Chrysler 300H / 1962 Chrysler 300 Sport / 1964 International Travelall / 2015 Tesla Model S

            Comment

            • trikemike
              New Member
              • Jul 2020
              • 26
              #4

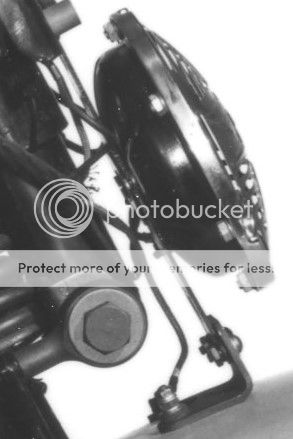

              Mine has the insulated bolt on the top horn mount, it's a '46, my not be right but it works.
              Ignore the late night shoddy wiring, I'm in the process of re-wiring. Re-do the ends correctly and run wires through asphalt looms.
              Mike
